Prepare Fork

Fork LoopWorkspace

Are you a Caregiver? Are you planning to build more than one app? (Click to close/open)

Did you skip the optional section to Create a Free GitHub Organization?

If you plan to build more that one app and use your personal account, you must add the 6 Secrets to each repository for each app. It is not hard but it can get tiresome.

If you make use of the organization option, you only enter the 6 Secrets one time for all your repositories. This is strongly recommended, but not required, for all Browser Builders.

Section Summary (click to open/close)

Fork https://github.com/LoopKit/LoopWorkspace into your account.

To skip the detailed instructions, click on Configure Secrets

Existing Fork

If you already have a fork of LoopWorkspace, click on Already Have LoopWorkspace to decide what to do. That section provides links to return you to these instructions.

Create the Fork

1. Click this link https://github.com/LoopKit/LoopWorkspace to open the LoopWorkspace repository owned by LoopKit

2. At the upper right side of the screen, click on the word Fork



3. Refer the the GIF below:

   • If you created a free organization (strongly recommended), you will see the display shown in the GIF below where you will choose your organization as the owner
     • If you did not set up a free organization, my-name will be automatically filled in as the owner (Owner)
   • If you already have a fork, you should not proceed, see Already Have a LoopWorkspace
   • The repository name is already filled in
     • Do not rename the repository to something else
     • It needs to match the original repository name or automatic building will not work
   • Leave the selection that says "Copy the main branch only" checked
   • Click on the green Create fork button



Successful Fork

After creating the  fork, your screen should be similar to the next graphic - it will say main for the branch instead of dev because this graphic was prepared before the release of Loop 3. You may or may not see the messages you are told to dismiss in the next two bullets. No worries if you don't see them.

• Near the top right, click on the close button (x) to dismiss the Successfully fetched message
• In the middle, click on the Dismiss button to remove the "Your branch is not protected" message

Carefully compare your screen to the graphic below paying attention to the highlighted sections.

• Note that your URL is https://github.com/my-name-org/LoopWorkspace or https://github.com/my-name/LoopWorkspace where my-name is the name you chose:
  • Many graphics for LoopDocs are created using a free GitHub organization called loopdocs-tester
• The comment on the second row indicates where the  fork  came from (that is a clickable link)
• The branch that is selected is main
• The message says "This branch is up to date with LoopKit/LoopWorkspace:main"

Configure Secrets

If you set up a GitHub organization (strongly recommended), follow this set of instructions.

If you decided to not to use a GitHub organization, skip ahead to Personal Account: Prepare to Enter Secrets.

What if I already have a bunch of forks in my personal account?

You do not have to switch to an organization. But if you want to make the move, follow instructions here Switch to a GitHub Organization

Prepare to Enter Secrets

You will be adding Secrets and Variables to your organization. This makes them available to any app you decide to build as long as you set up your free GitHub organization as the owner of the fork.

1. Tap on this GitHub link to see your organizations. (If you don't see a screen similar to the graphic below - you are not logged in to GitHub).



2. Choose your organization name from the list (most people will only see one organization)

   • I chose loopdocs-tester as my organization, so you will see that name in the URL for graphics in this section.



3. Click on the Settings Icon near the top right

   • If you don't see ⚙️ Settings, make your browser wider or scroll to the right
   • After you click on ⚙️ Settings, your screen will show a lot of menu items on the left side of the screen.
   • Scroll down until you can see the Security section with Secrets and variables drop down.
   • Click on the dropdown icon and then selection Actions



The next steps are identical whether you are configuring your organizations Secrets and Variables or doing this for every repository in a personal account.

• Skip ahead to Enter the Secrets

Personal Account: Prepare to Enter Secrets

This section is only if you are using a personal GitHub account to build. Using an organization is recommended. If you are using an organization, skip ahead to Enter the Secrets.

Log into GitHub.

1. Return to your forked copy of LoopWorkspace

   • Click on your personal icon at the upper right to see the dropdown menu and select "Your repositories"



2. Click on LoopWorkspace to open that repository

3. Click on the Settings Icon near the top right of your LoopWorkspace

   • If you don't see ⚙️ Settings, make your browser wider or scroll to the right
   • If you still don't see ⚙️ Settings, then you are not on your fork or you need to sign in to your GitHub account

   • After you click on ⚙️ Settings, your screen should look like the graphic below



4. Refer to the graphic above:

   • On the left side, find the Secrets and variables dropdown (red circlea)
   • Tap on Actions (red rectangle)



At this point the instructions are the same whether you are using an organization or a personal account.

Enter the Secrets

The steps to enter the Secrets and Variables are identical whether you are configuring these in your organization account or repeating this for every repository in a personal account. Your screen should look like one of the graphics below. If not head back to Configure Secrets.

If you are using a GitHub organization, tap on the green button for New organization secret:

If you are using a personal account, tap on the green button for New repository secret::

1. After you tap on the New secret button
   • A new screen appears as shown in the first graphic below
   • Do not do anything until reading the sub-bullets, examining the graphics, and proceeding to the next section where each Secret name is provided for you to copy and paste
     • Under Name *, click on YOUR_SECRET_NAME and paste one of the 6 secret names, as directed in Enter Each Secret
     • Click inside the Secret * box and paste the value for that secret
     • Once you click on Add Secret, the secret will be added
     • The second graphic below shows TEAMID added and ready for save

Enter Each Secret

Enter the name of each Secret found in Save Your Information and your value for that Secret.

• Once you save a secret value, you will not be able to view what you entered, so check carefully before you hit Add Secret
  • You can replace the value for any secret later - but you can't view the saved value
• Be especially careful with your TEAMID
  • If TEAMID is incorrect, the initial Actions will succeed but Build Loop will fail and you will have some clean-up to do

• You can copy the names of the Secrets by hovering to the right of each word below until you see the copy button (). Click on the button to copy the Secret name and paste it into GitHub where you see YOUR_SECRET_NAME. This avoids spelling errors.

  TEAMID


  FASTLANE_ISSUER_ID


  FASTLANE_KEY_ID


  FASTLANE_KEY


  GH_PAT


  MATCH_PASSWORD


• For the FASTLANE_KEY value, copy the entire contents from
  -----BEGIN PRIVATE KEY-----
  through
  -----END PRIVATE KEY-----


• For MATCH_PASSWORD value - if you did not already make up a password and save it with your other Secrets, do it now
  • The MATCH_PASSWORD must be the same for any repository using this method (Other Apps)

Once you add all six Secrets, your screen should look similar to the one of the two examples in the graphic below.

An organization account (top half of graphic) has an column for Visibility which is not seen in a personal account (bottom half of the graphic). The default setting for visibility is Public repositories. If yours says anything else, you should update the visibility by tapping on the pencil icon.

• Check that all of your Secrets are spelled correctly
• If one is misspelled, delete it and add a New secret with the correct name

Add Variable

This is a new step required with Loop 3.6.0 and newer versions. It provides automatic renewal of certificates, which expire once per year.

1. While in the same screen where you enter the Secrets, click on the Variables tab to the right of the Secrets tab
   • If you aren't at the screen:
     • GitHub organization account: go to your organization page and select Settings; scroll down, select Secret and Variable and then select Actions
     • GitHub personal account: go to your repository for the app you are building, select Settings; scroll down, select Secret and Variable and then select Actions
2. Select new variable and give it the name the ENABLE_NUKE_CERTS and enter true as the value

ENABLE_NUKE_CERTS

What will this accomplish?

• Certificates will be automatically updated if you have configured this Variable
• With Loop 3.6.0 and newer versions, as long as your Apple developers license is valid and all agreements are signed: you can skip the steps to create or renew your certificates!

Not sure how to get to the Variables screen. Review the two graphics.

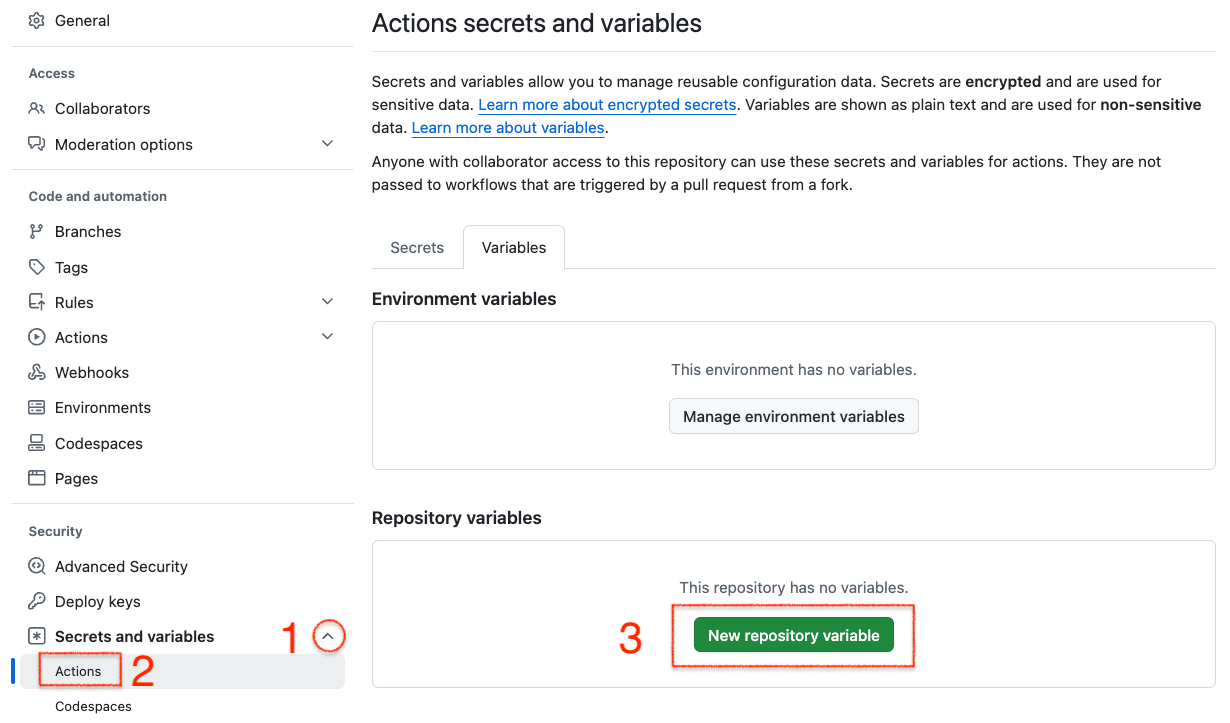

This graphic shows how to access Variables for a repository (similar steps required for an organization).

This graphic shows how to add the ENABLE_NUKE_CERTS to an organization. Be sure that Repository access is set to Public repositories. When adding this to a repository, that option is not shown.

Next Step

The next step is to Validate Secrets and Add Identifiers.

Switch to a GitHub Organization

If you are someone who already has a lot of forks in your personal account and want to switch to using a GitHub organization. Here's how:

1. Follow the steps to create your organization
   • Create a Free GitHub Organization
2. Add the Secrets and the Variable to your GitHub organization as explained in Prepare to Enter Secrets
3. Fork all the repos you normally use, but this time, set your organization as the owner
4. For each repository in your organization:
   • Tap on the Actions tab
   • Enable Actions
   • Run the Create Certificates Action and wait for success
   • Run the Build Action
     • WHAT??
     • That's right - all the setup is done on the Apple side and you already did that
     • If you succeesfully built with your private GitHub account, everything is already configured
     • The one thing you might want to do is copy customizations from your personal account fork to the organization fork
5. Return to your private GitHub account
   • Your choice: either delete the forks in your personal account or at least disable the building from your personal account
   • Disable Building for Personal GitHub Account

Important

Your personal GitHub account is still needed. The free organization points to your personal account as a member. If you delete your personal GitHub account, you lose access to your organization account too.

Already Have LoopWorkspace?

Some people may already have a copy (fork) of LoopWorkspace.

If your copy (fork) is not from LoopKit, follow the Delete and Start Fresh directions.

If your copy (fork) is from LoopKit:

• Open your LoopWorkspace repository (https://github.com/my-name-org/LoopWorkspace) where you use your version of my-name in the URL
• Review the graphic in the Configure: Successful Fork section
  • Make sure all the items highlighted by red rectangles are correct with the possible exception of your fork being up to date
• If you see a message that your fork is not up to date - tap on the Sync fork button and follow the instructions
• Continue with Validate Secrets and Add Identifiers

Delete and Start Fresh

If your fork is not from LoopKit:

• Delete your LoopWorkspace repository
  • Instructions to delete a repository are found at GitHub Docs
• Return to Fork LoopWorkspace and follow all the instructions
